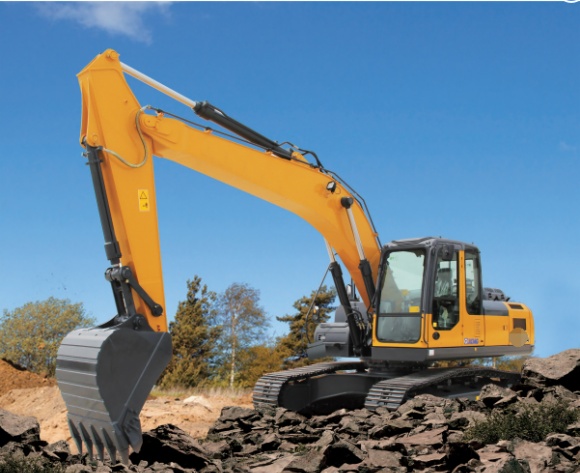

RSXE135D Hydraulic Excavator
【Technical Specification】
Product Name	Hydraulic Excavator	Operating Weight (kg)	13200
Model	RSXE135D	Bucket Capacity (m³)	0.32-0.61
[Engine]
Model	QSF 3.8	Turbo	Yes
Empty In the Cold	Yes	Number of Cylinders	4
Electronic Fuel Injection	Yes	Maximum Torque/Speed (N.M/rpm)	470/1300
Four Stroke	Yes	Rated Power (kw/rmp)	86/2200
Water-cooling	Yes	Displacement(L)	3.8
【Main Performance】
Walking Speed (km/h)	5.2/2.9	Bucket Digging Force (KN)	99.1
Rotary Speed (r/min)	11	Arm Digging Force (KN)	68
Climbing Ability (dg）	35	Maximum Traction (KN)	134
Ground Pressure (Kpa)	40.4
【Hydraulic System】
Main Pump Rated Flow (L/min)	125.4*2	Rotary System Pressure (Map)	25
Main Safety Valve Pressure (Mpa)	31.4	Pilot System Pressure (Map)	3.9
Travel System Pressure (Mpa)	34.4
【Oil Capacity】
Fuel Tank Capacity (L)	260	Engine Oil Capacity (L)	11
Hydraulic Tank Volume (L)	105
【Outline Dimension】
Total Length (mm)	7795	Track Base (mm)	2918
Total Width (mm)	2525	Guage (mm)	1990
Total Height (mm)	2880	Counterweight Clearance (mm)	931
Table Width (mm)	2490	Minimum Ground Clearance (mm)	466
Track Shoe Length (mm)	3648	Minimum Turing Radius (mm)	2325
Overall Width of Chassis (mm)	2490	Track Height (mm)	802
Track Width (mm)	500
【Scope of Work 】
Maximum Digging Height (mm)	8638	Maximum Vertical Mining Depth (mm)	4698
Maximum Unloading Height (mm)	6174	Maximum Digging Radius (mm)	8304
Maximum Digging Depth (mm)	5546	Maximum Turing Radius (mm)	2445
Excavation Depth of 8 feet Level (mm)	5335
【Standard】
Boom Length (mm)	4600	Bucket Capacity (m³)	0.52
Arm Legth (mm)	2520
